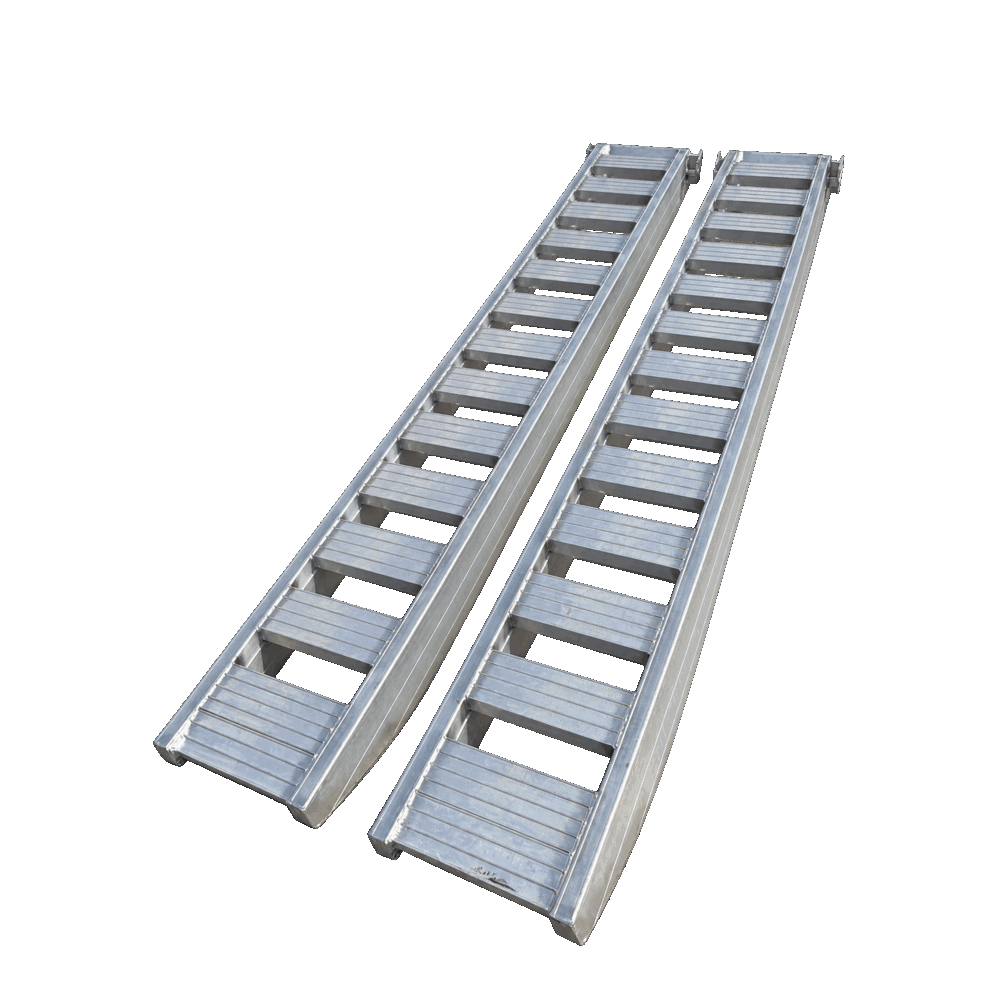

Aluminum Loading Ramps
A pair of aluminum ramps for loading compact machines onto a trailer or truck deck, rated to 11,023 lb (5,000 kg) per pair.
Each ramp is 141.7 in (3.6 m) long with a maximum operating angle of 16.5°, giving mini track loaders, skid steers and compact excavators a gradual climb onto the deck. Sold as a pair; confirm your machine’s operating weight against the rated capacity before ordering.
Carrier make, model and interface are reviewed before order.
Function
Key features
- 11,023 lb (5,000 kg) capacity per pair
- 141.7 in (3.6 m) length
- Aluminum construction
- Sold as a pair (2 ramps)
Technical data
Specifications
- Length
- 141.7 in (3,600 mm)
- Width
- 17.3 in (440 mm)
- Height
- 5.9 in (150 mm)
- Maximum capacity per pair
- 11,023 lb (5,000 kg)
- Maximum operating angle
- 16.5°
- Material
- Aluminum
- Sold as
- 1 pair (2 ramps)
- Compatible carriers
- Mini track loader, Skid steer loader, Compact track loader, Excavator
- Intended work
- Material handling
Specifications may change. Confirm the final configuration before ordering.
Carriers
Carrier families
- Mini track loader
- Skid steer loader
- Compact track loader
- Excavator
Applications
Intended work
- Material handling
FAQ
Aluminum Loading Ramps — buyer questions
Will the Aluminum Loading Ramps fit my carrier?
It is selected for these carrier families: Mini track loader, Skid steer loader, Compact track loader, Excavator. Carrier make, model and interface are reviewed before order: geometry and attachment points, adapter and locking method (plate, coupler type or known mounting dimensions), then flow, pressure and auxiliary couplers against what the attachment requires. Share the carrier brand and model, the interface type or known mounting dimensions, and hydraulic flow if you know it; unknown fields can stay blank.
What work is the Aluminum Loading Ramps intended for?
Intended work: Material handling. Carrier, tool and intended application are considered together in the review — state the material, conditions and expected result and you get a recommended configuration, or the questions needed to confirm one.
How do I order the Aluminum Loading Ramps in Canada, and is it under warranty?
Through an authorized ArcPath dealer, or by contacting us directly and we will route you to the nearest one; have the machine model and serial number ready. Genuine ArcPath parts and attachments are covered by ArcPath warranty; terms depend on the item and the application, so ask your dealer for the specific coverage. Listed prices are manufacturer suggested retail prices in Canadian dollars, before taxes, freight and any dealer-specific pricing.
