Mini Track Loaders
ArcPath's nimble mini-track loaders are all about tackling tough jobs in tight spaces. They effortlessly navigate narrow pathways while dominating all types of terrain with exceptional traction and stability.
Arcpath compact track loaders deliver strong flotation and pushing power on soft or uneven ground for construction, landscaping and agriculture across Canada, with wide attachment compatibility for year-round versatility.
- Rubber tracks for flotation on soft, wet or uneven ground
- High auxiliary hydraulic flow for demanding attachments
- One machine for grading, loading, mulching and material handling
ATL-1000
Compact Stand-On Track Loader
ArcPath's nimble mini-track loader is all about tackling tough jobs in tight spaces. It effortlessly navigates narrow pathways while dominating all types of terrain. Featuring an optional dual hydraulic coupler system, the ATL-1000 enhances productivity and versatility for all ArcPath attachments.
Operating Weight
3,086 lbs (1,400 kg)
Rated Operating Capacity
1,000 lbs (453.5 kg)
Tipping Load
2,866 lbs (1,300 kg)
Bucket Pin Height
87 in (2,210 mm)
Engine
Kubota D1105 Plus, 24.4 HP
Width
36 in (914 mm)
Aux Hydraulic Flow
13.5 GPM
Travel Speed
4.4 mph
Key Features
Compatible Attachments
Maximize your ATL-1000's versatility with our complete range of 15+ purpose-built attachments.
36" GP Bucket
General purpose bucket for loading and grading.
42" GP Bucket
Larger general purpose bucket for increased capacity.

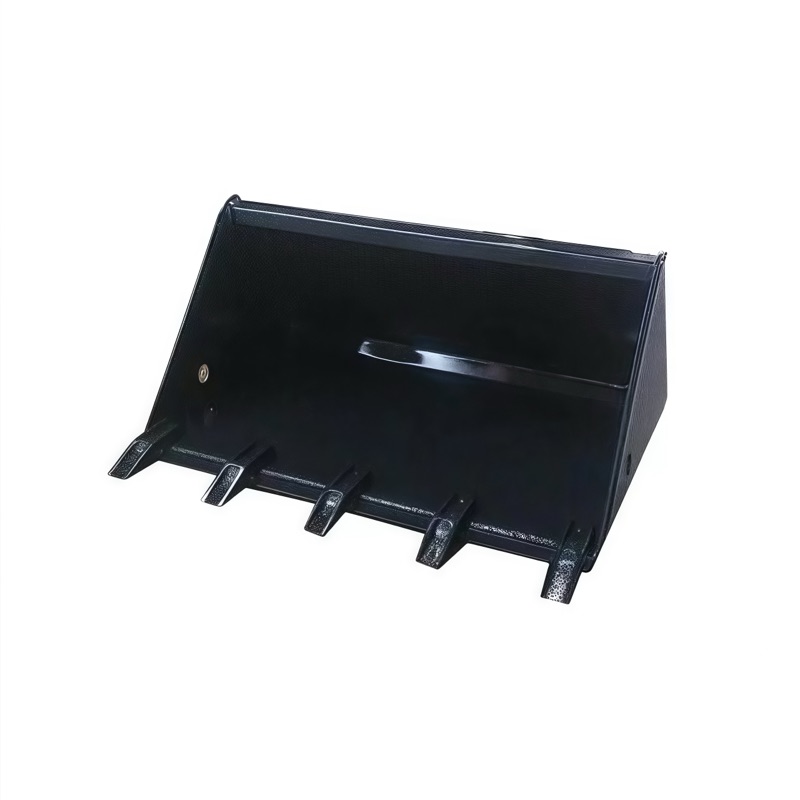

Teeth Bucket
Enhanced digging performance in hard or rocky soil.
High Capacity Bucket
Maximized volume for light material handling.
12" Auger
Post hole drilling for fencing, signs, and foundations.

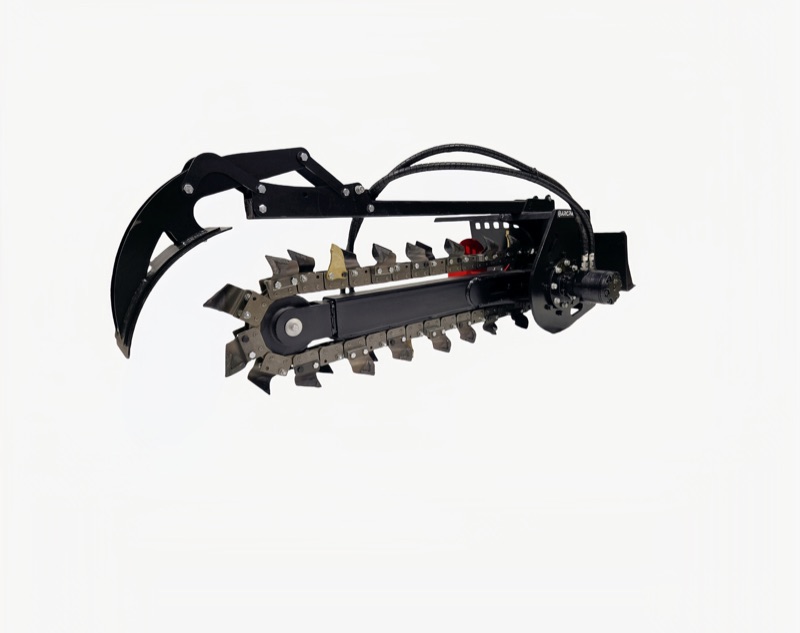

Trencher
Efficient trenching for utilities, irrigation, and drainage.
Power Rake
Surface preparation and grading for landscaping.
Pallet Forks
Material handling and pallet transport on job sites.

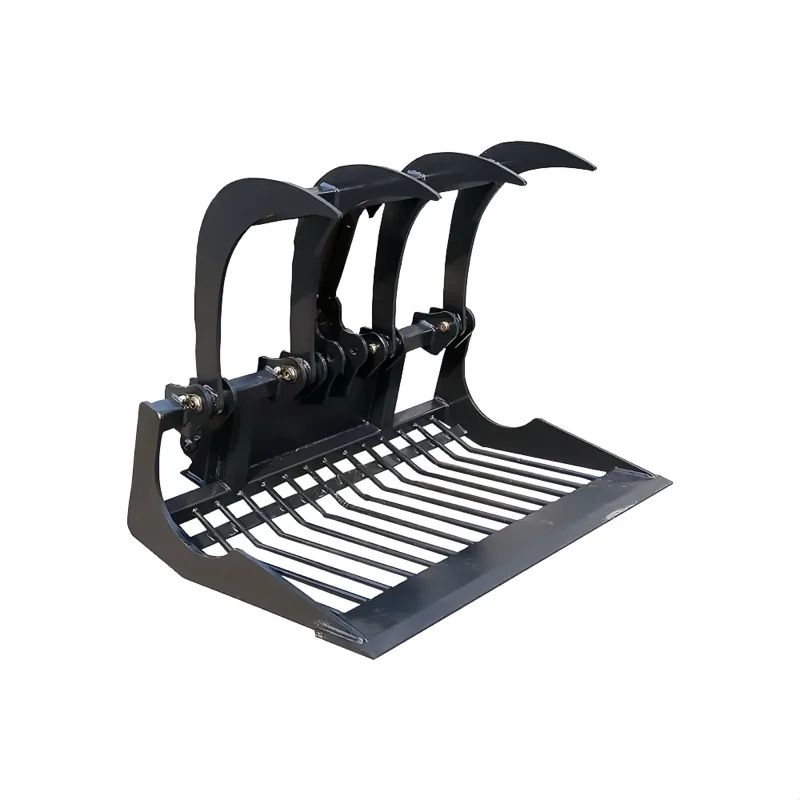

Skeleton Grapple
Sorting and separating debris, rocks, and brush.
Grapple Bucket
Combined bucket and grapple for versatile material handling.
Root Rake
Land clearing and root removal operations.

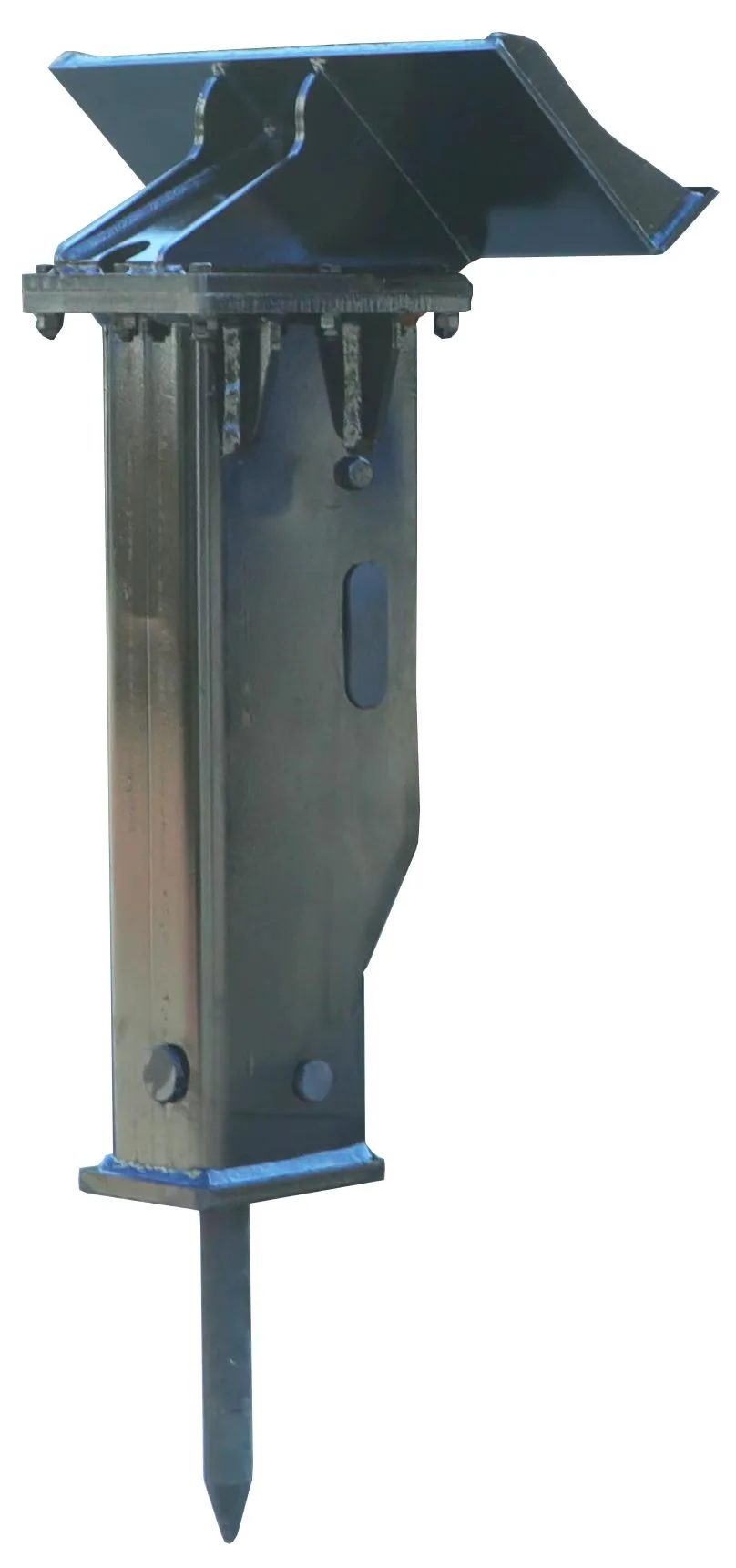

Hydraulic Breaker
Heavy-duty breaking power for demolition and rock removal.
Stump Grinder
Efficient stump removal for landscaping and clearing.
Brush Cutter
Vegetation management and brush clearing.
Snow Blade
Snow removal and plowing for winter operations.
Snow Blower
High-capacity snow clearing for heavy snowfall.
Sweeper
Surface cleaning for parking lots and pathways.
Hopper Broom
Collection sweeping with integrated hopper.
Why Choose ArcPath Track Loaders
Superior Performance
Advanced hydraulic systems and all-terrain tracks deliver consistent performance in challenging conditions.
Versatile Attachments
Dual hydraulic coupler system allows quick attachment changes for maximum productivity.
Built Tough
Heavy-duty construction and quality components ensure reliable performance year after year.
Frequently asked questions
Track loaders spread weight over rubber tracks for better flotation and traction on soft, wet or uneven ground, while wheeled skid steers are faster and cheaper on hard surfaces. Choose a track loader for soft terrain and finish-sensitive sites.
